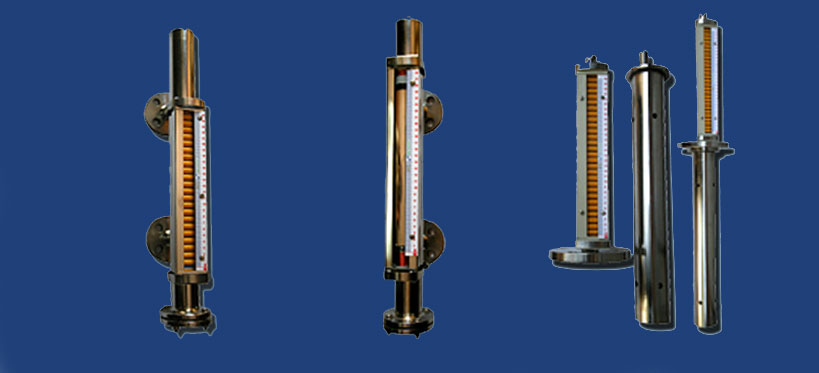

Capsule Type Magnetic Level Indicator
Model No. : MI - 02
The By-Pass Level Indicator is installed outside of a vessel or tank. The liquid level in the tank can easily be observed from the change of the flag color. Optional devices of magnetic switch and level transducer can be added for electrical signal output and level transmitting.
Principle
The By-Pass indicator utilizes hydrostatic principle to show the liquid level in the tank. A float with a magnet inside rises and drops according to the liquid level change. Magnetic flags will flip as float passes through to indicate liquid level based on magnetic attraction method.
General Data
- Density - from 0.70 g/cm3
- Precision for interface or density - from ±0.01 g/cm3
- Measuring Error - ±10mm
- Viscosity - Max 1000mPas
- Connection - Weld End (Standard) / Flanges DIN and ANSI
- Weight - Basic 7 Kg
Design Data
- Mounting - Top or Side
- Operating Pressure - Up to 50 Kg/cm2
- Operating Temperature - -20 to 400°C
- Process Connection - Flanged or Screwed
- C-C Distance (±3mm) - Up to 6000mm
- Flag Display Length - Up to 6000mm
- Specific Gravity - 0.75 (Min.)
- Indicator Roller - Metallic
Optional Accessories
Magnetic Level Switches
Reed switches or electrical snap (magnetic pendulum switch) may be mounted on the rail of the level gauge to be activated at high / low levels. The number of switches is only limited by length of the indication rail and the switches can be mounted on the left and right side of the rail. Mounting the level switches is a very easy task.
Magnetic Level Transmitter
The analogue transmitter mounts directly to the side of the level gauge chamber, providing a continuous 4-20mA output signal proportional to the liquid level with an accuracy of ±3mm. Using simple and reliable reed switches surface mounted to a printed circuit board. The transmitter can be equipped with a local indicator to show the level height in a length scale or indicate the percentage of the total height or the tank volume.

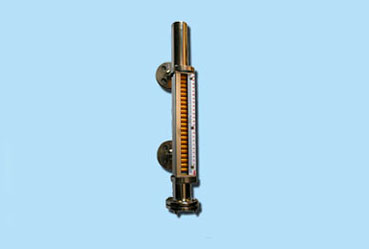

Bi-colour Magnetic Level Indicator
Model No. : MI - 03
The By-Pass Level Indicator is installed outside of a vessel or tank. The liquid level in the tank can easily be observed from the change of the flag color. Optional devices of magnetic switch and level transducer can be added for electrical signal output and level transmitting.
Principle
The By-Pass indicator utilizes hydrostatic principle to show the liquid level in the tank. A float with a magnet inside rises and drops according to the liquid level change. Magnetic flags will flip as float passes through to indicate liquid level based on magnetic attraction method.
General Data
- Density - from 0.70 g/cm3
- Precision for interface or density - from ±0.01 g/cm3
- Measuring Error - ±10mm
- Viscosity - Max 1000mPas
- Connection - Weld End (Standard) / Flanges DIN and ANSI
- Weight - Basic 7 Kg
Design Data
- Mounting - Top or Side
- Operating Pressure - Up to 50 Kg/cm2
- Operating Temperature - -20 to 400°C
- Process Connection - Flanged or Screwed
- C-C Distance (±3mm) - Up to 6000mm
- Flag Display Length - Up to 6000mm
- Specific Gravity - 0.75 (Min.)
- Indicator Roller - Metallic
Optional Accessories
Magnetic Level Switches
Reed switches or electrical snap (magnetic pendulum switch) may be mounted on the rail of the level gauge to be activated at high / low levels. The number of switches is only limited by length of the indication rail and the switches can be mounted on the left and right side of the rail. Mounting the level switches is a very easy task.
Magnetic Level Transmitter
The analogue transmitter mounts directly to the side of the level gauge chamber, providing a continuous 4-20mA output signal proportional to the liquid level with an accuracy of ±3mm. Using simple and reliable reed switches surface mounted to a printed circuit board. The transmitter can be equipped with a local indicator to show the level height in a length scale or indicate the percentage of the total height or the tank volume.

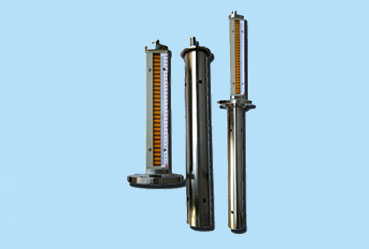

Top Mounted Magnetic Level Indicators
Model No. : MI - 04
Top Mounted Magnetic Level Indicators are particularly useful for continuous level measurement of liquid which coagulate if stagnant, liquids with high viscosity. Liquids under high pressure & for those liquids which are corrosive & hazardous in nature. We can also provide you with bi-colour.The By-Pass Level Indicator is installed outside of a vessel or tank. The liquid level in the tank can easily be observed from the change of the flag color. Optional devices of magnetic switch and level transducer can be added for electrical signal output and level transmitting.
Principle
The By-Pass indicator utilizes hydrostatic principle to show the liquid level in the tank. A float with a magnet inside rises and drops according to the liquid level change. Magnetic flags will flip as float passes through to indicate liquid level based on magnetic attraction method.
General Data
- Density - from 0.70 g/cm3
- Precision for interface or density - from ±0.01 g/cm3
- Measuring Error - ±10mm
- Viscosity - Max 1000mPas
- Connection - Weld End (Standard) / Flanges DIN and ANSI
- Weight - Basic 7 Kg
Design Data
- Mounting - Top or Side
- Operating Pressure - Up to 50 Kg/cm2
- Operating Temperature - -20 to 400°C
- Process Connection - Flanged or Screwed
- C-C Distance (±3mm) - Up to 6000mm
- Flag Display Length - Up to 6000mm
- Specific Gravity - 0.75 (Min.)
- Indicator Roller - Metallic
Optional Accessories
Magnetic Level Switches
Reed switches or electrical snap (magnetic pendulum switch) may be mounted on the rail of the level gauge to be activated at high / low levels. The number of switches is only limited by length of the indication rail and the switches can be mounted on the left and right side of the rail. Mounting the level switches is a very easy task.
Magnetic Level Transmitter
The analogue transmitter mounts directly to the side of the level gauge chamber, providing a continuous 4-20mA output signal proportional to the liquid level with an accuracy of ±3mm. Using simple and reliable reed switches surface mounted to a printed circuit board. The transmitter can be equipped with a local indicator to show the level height in a length scale or indicate the percentage of the total height or the tank volume.
