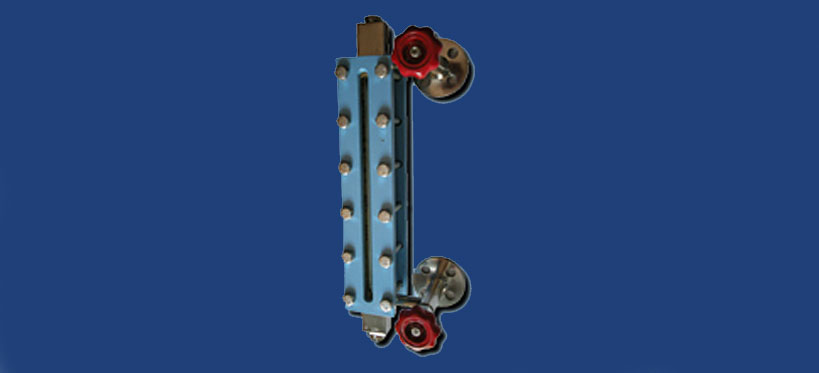

Transparent Level Indicator
Model No. : MI - 06 (A)
The Mayur Instruments Transparent Level Indicators are designed for safe and positive visual indication of liquid level in vessels under high pressure and temperature conditions.
Principle
The Mayur Instruments Transparent flat glass Level Indicators is a clear glass for visual indication and specially for interface services or where the liquid is dirty or viscous. Light striking on glass portion covered by liquid is reflected (absorbed) making this portion appear BLACK, whereas glass portion covering vapour space reflects light making it appear SILVERY - WHITE. Thus a sharp clear line marks the liquid, eliminating all possibilities of errors in reading.
Gauge Classification
- Low Pressure - 30 Kg/cm2
- Medium Pressure - 65 Kg/cm2
- High Pressure - 100 Kg/cm2
- Gauge Glass - Tempered soda ash / Borosilicate (30W x 17mm Thk) / Tempered Borosilicate (34W x 17mm Thk)
- Cushion / Gasket - CAF, CNAF, PTFE, Ss304 Spiral wound with Graphite Filler & Ss316 Spiral wound with Graphite Filler
- Body (Liquid Chamber) - CS, ASTM A-105, SS304, SS316 or PP (CS Reinforced)
- Cover Plate - CS, ASTM A-105, SS304, SS316 or FRP
- Bolts - CS, SS304 or A 193 Gr. B7
- Nuts - CS, SS304 or A 193 Gr. B7
- Process Connection Orientation - Rear / Rear or Left / Left or Right / Right or Vertical / Vertical
- Isolation Valves - Offset needle valve x auto ball check x screwed bonnet (85 Kg/cm2) / Union bonnet (165 Kg/cm2) / Bolted bonnet (210 Kg/cm2)
- Vent - ½” NPT (BSP for PP / TEFLON MOC) plug / valve (Ball, Needle, Diaphragm, Globe, Gate as required)
- Vent Drain - /2” NPT (BSP for PP / TEFLON MOC) plug / valve (Ball, Needle, Diaphragm, Globe, Gate as required)
- Calibrated Scale - Polycarbonate / SS304 / Aluminum
