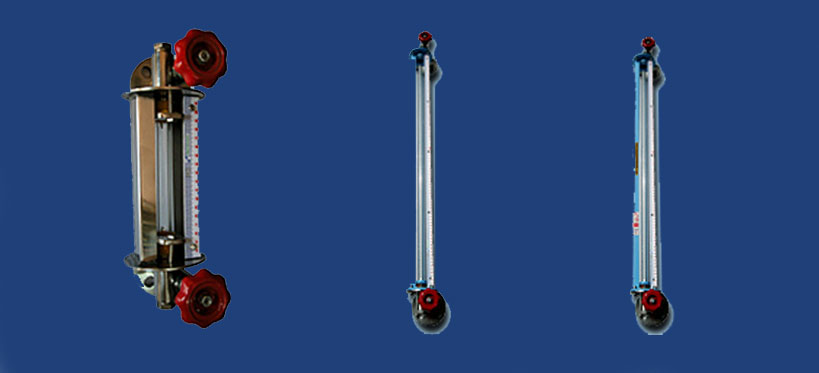

Tubular Level Indicator (Side Mounted)
Model No. : MI - 01
The Mayur Instruments Tubular Level Indicator (Side Mounted) is a reliable device for reading the level of the liquid in the tank can easily be observed. It is a simplest form of level indicator. These level indicators find wide application for level measurement in process tanks, batching tanks etc.
Principle
The Gauge is fitted between two end blocks through gland packings. The gauge is mounted parallel to tank so as to form a close loop causing tank liquid to seek its level in gauge. Guards are provided in the form of tie - rods / C - channels around the gauge to protect it from accidental blows. End blocks have bulit - in isolating valve, drain valve and vent plug.
General Data
- Glass Tube - Heavy Walled Borosilicate Glass H-19 / 16 Teflon
- End Block MOC - CS / SS 304 / SS 316 / PP / PVDF
- Protective Channel - C.S. Rectangle Channel Box With Powder Coated
- Packing - Teflon
- Connection - Flanged ASA
- Valve - CS / SS 304 / SS 316 / PP / PVDF
Design Data
- Mounting - Side
- Operating Pressure - Up to 15 Kg/cm2
- Operating Temperature - Up to 100°C Up to 4 Meters
- Process Connection - Flanged or Screwed
- C-C Distance (±3mm) - Up to 4000mm (More than 4000mm Please consult Factory)
- Visibility - C-C Distance - 150mm
